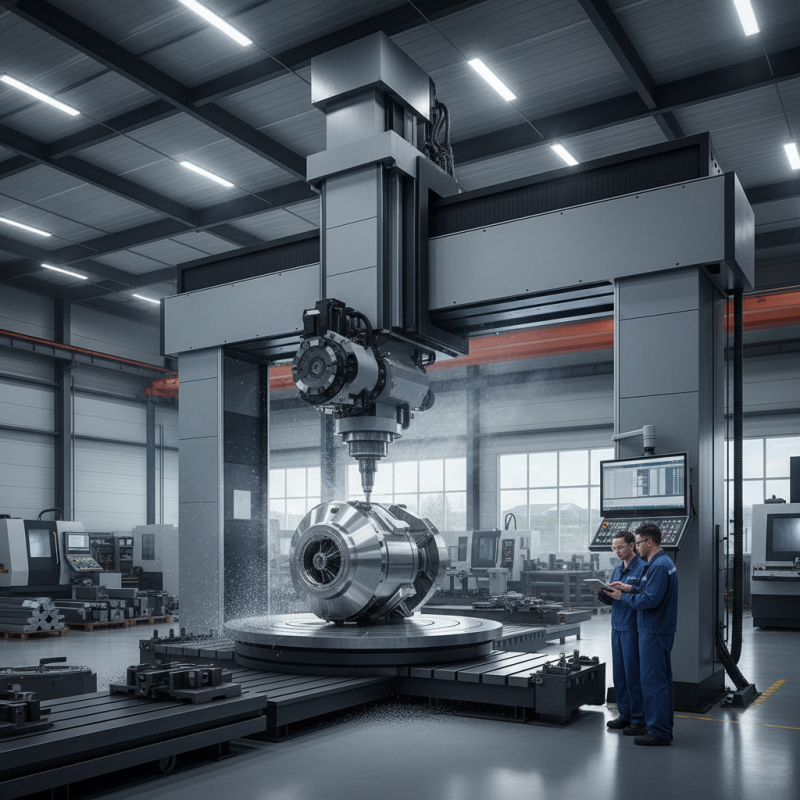

Top 5 Tips for Choosing a 5-axis Gantry Machining Center?

Choosing the right 5-axis Gantry Machining Center can significantly impact your manufacturing efficiency. This equipment is vital in industries like aerospace, automotive, and precision engineering. With numerous options on the market, making an informed decision requires careful consideration.

When selecting a 5-axis Gantry Machining Center, focus on your specific needs. Think about your production volume and the types of materials you will work with. A center that excels in aluminum might not perform well with harder metals. Examine the specifications closely. Look for manufacturers with a solid reputation and proven track record in the industry.

It's crucial to evaluate not only the machine's features but also the support and training provided. A reliable supplier can make a difference in ensuring your investment pays off. Remember, even the best machines need proper handling and maintenance. Reflect on your operational goals and future growth potential. Balancing immediate requirements with long-term goals will help guide your choice.

Understanding 5-Axis Gantry Machining Centers and Their Applications

5-axis gantry machining centers are becoming essential in various industries. Their ability to handle complex geometries makes them ideal for aerospace and automotive applications. According to a report by MarketsandMarkets, the global 5-axis machining market is set to grow significantly, reaching over $2 billion by 2025.

Understanding these machines is crucial. A 5-axis gantry machining center allows for simultaneous movement along three linear axes and rotation around two additional axes. This adaptability enables manufacturers to produce intricate parts with high precision. The versatility of these machines is evident in their applications, from prototype development to mass production. However, selecting the right model can be challenging.

When choosing a machining center, consider your specific needs. Evaluate the types of materials you will be machining. Materials like titanium require more robust machines. Additionally, check the machine's weight capacity. A stable base is vital for achieving precision. Don’t overlook maintenance requirements. Regular maintenance ensures longevity and consistent performance.

It's also crucial to assess software capabilities. Advanced software can enhance operations and streamline workflows. Invest time in training for operators. Their proficiency impacts the overall efficiency. A well-trained team can maximize the machine's potential and minimize errors, which is pivotal for complex machining tasks.

Evaluating the Precision: Key Metrics for 5-Axis Machining Processes

When evaluating the precision of a 5-axis machining process, metrics such as accuracy, repeatability, and surface finish play critical roles. According to a report from the Machining Industry Association (MIA), the required accuracy for complex components often exceeds 0.01 mm. This level of precision is vital for aerospace and medical applications, where even minor deviations can impact functionality.

Repeatability is another key metric. Data from the National Institute of Standards and Technology (NIST) suggests that a repeatability of 5 microns or better is necessary for achieving consistent results in high-volume production. However, achieving this standard can be challenging, particularly in environments with temperature fluctuations. Those fluctuations can lead to thermal expansions that affect machining precision.

Surface finish quality is essential, too. Research by the Precision Engineering Society indicates that a surface roughness (Ra) under 0.8 microns is often preferred for components that require tight tolerances. This aspect can be influenced by tooling, feed rates, and even cutting fluids. Each of these factors must be carefully considered to achieve optimal outcomes. Addressing these metrics thoughtfully ensures that a 5-axis gantry machining center meets the demands of modern manufacturing.

Top 5 Tips for Choosing a 5-axis Gantry Machining Center

Assessing Size and Weight Capacity for Optimal Machining Efficiency

When selecting a 5-axis gantry machining center, evaluating size and weight capacity is crucial. A machine’s size directly correlates with the types of projects it can handle. Larger machines can accommodate bigger workpieces, making them suitable for various applications. However, size is not the only factor. The layout of your workspace should also be considered, as a large machine might overwhelm a limited area.

Weight capacity is another vital consideration. Understanding the maximum weight the gantry can handle ensures it is fit for purpose. Overloading the machine can lead to significant issues, such as safety hazards and potential damage. Allocate some time to reflect on the specifications needed for your operations. Ensure the gantry not only meets your current needs but is also flexible enough for future projects.

Lastly, remember that heavier machines often offer more stability during operation. This stability can enhance precision and reduce wear on the machine. Balancing weight capacity with the size of the machine is essential. Consider your machining requirements and your workshop's capabilities. This analysis will ensure you make an informed choice, avoiding potential pitfalls in the future.

Analyzing Software and Control Systems for Enhanced Machining Performance

When selecting a 5-axis gantry machining center, analyzing the software and control systems is crucial for optimal performance. A reliable software suite provides an intuitive interface for operators. It allows for streamlined programming and simulation, which significantly reduces setup time. Look for systems that support various file formats. This flexibility will enhance compatibility with your existing processes.

Consider system responsiveness. A lag in control can affect machining precision. You want software that reacts instantly to inputs. This ensures that the gantry can execute complex movements accurately. Some machining centers offer predictive maintenance features. These alerts can help avoid unexpected downtime. It's an essential aspect of enhancing long-term productivity.

While choosing, keep in mind the learning curve for operators. Complex systems can be overwhelming. They might require extensive training to maximize efficiency. It's beneficial to evaluate the support resources available. Documentation and training help users become proficient. When weighing options, investigate how different software performs in real-world scenarios. User feedback can reveal both strengths and weaknesses. Ensure that the chosen center aligns well with your specific production needs. This careful evaluation will foster more productive outcomes.

Budget Considerations: Cost-Benefit Analysis of Gantry Machining Centers

When considering a 5-axis gantry machining center, budget plays a crucial role. The initial investment can range significantly. According to industry reports, costs typically span from $250,000 to over $1 million. Such figures highlight the importance of a thorough cost-benefit analysis. Unanticipated operational expenses should also be considered. These can include maintenance, tooling, and energy consumption.

Evaluate the long-term savings potential. For instance, multi-axis machining can reduce part setup time by up to 75%. This efficiency translates to higher productivity. Moreover, a reliable center improves precision, potentially lowering scrap rates. Research indicates that companies can increase profit margins by over 20% through enhanced operational efficiency.

When selecting a machining center, consider these tips:

• Determine the specific machining capabilities required.
• Match your production volume to the machine’s output capacity.
• Additionally, assess available support and training from suppliers.
• Equipment longevity is vital, so consider warranty options.
• Validate specifications through customer reviews and expert opinions to ensure reliable performance.
